ir ip ptz dome camera outdoor ptz camera:HK-SNIV8182 HK-SNIV8182 manufacturer from China Shenzhen hyking industrial co,ltd

Product Detail

Model No.: HK-SNIV8182

Production Capacity: 5000 sets/ Months

Delivery Date: 3-5 working days

Sensor: 1/4 Interline Transfer CCD

Zoom: 18X Optical Zoom,12X Electr...

Total Pixels: 440,000

Certificate: CE,FCC

waterproof IR Array ptz: Indoor and Outdoor

Means of Transport: Air

Packing: OEM Package Neutral Package

Brand Name: Hyking

TV Lines: 480TVL

Lux: Day/Night Color 0.7Lux B/W ...

Lens: f=4.1~73.8mm

IR Distance: 120M IR Distance

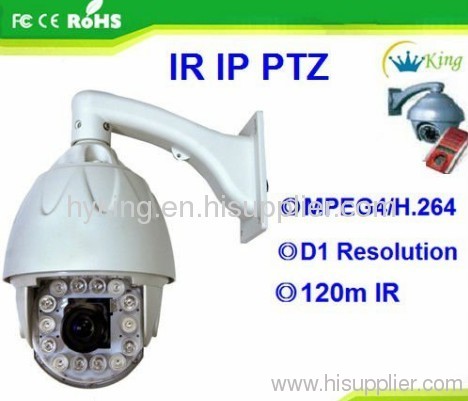

ir ip ptz dome camera HK-SNIV8182
-1/4 sony CCD 480TVL
-120M IR Distance,Two Groups IR LEDs
-D1 Record,Mobile Phone Support

ir ip ptz dome camera outdoor ptz camera:HK-SNIV8182

IR functions:

Indoor and Outdoor waterproof IR Speed Dome Camera
Two group IR LED, 14pcs 1W LED,and the IR distance is 120M
TheIR led can change according distance .if the distance is less than 30m,only 6pcs LED on , if the distance is more than 30 , the 14pcs LED willturn on .the temperature will be less than 48 °C after 8 hourscontinuous working .

Compression functions:

high-densityand programmable communication media processor Hisilicon Hi3510,SOCsingle chip solution,equipped with two processors,ARM9 and DSP
H.264 Main Profile@Level 3, realize transmission of High Definition video over low network bandwidth easily.
Up to 30 frames per second in all resolutions ranging up to D1(720*480)
Low power consuming of the DSP, suit to long time running
The encoding parameter can be adjusted dynamically (bit rate/frame rate/image quality)
streaming format (video streaming or audio & video streaming) can be Optional
Support dual-bitstream output

Network functions:

Up to 10 viewers can directly access the camera simultaneously
Built-in Web server enables the use of a standard Web browser for viewing and management
Support 3G mobile wireless remote control and view ip camera
Support dynamic IP address , LAN, Internet (ADSL and Cable Modem)
Support protocals: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP,DHCP, FTP,SNMP
Auto-adjusting frame rate according to realtime network rate
Support whole TCP/IP protocol
Encryption technology of the user name/password/compression bit rate, preventing lawless stealing the information

Record functions:

Specifications:

Model	HK-SNIV8182
Image Sensor	1/4 type Super HAD CCD
TVLs	480TVLs
Lens	3.5~122.4mm
Zoom	18X Optical Zoom,10X Electronic Zoom
Horizontal Angle of View	2.3~57.8
Minimum illumination	0.07Lux/0.01Lux
S/N ratio	> 50dB
Electric shutter	1/50~1/10000s
Privacy Zone	On
IR Induce	Yes
Color to Black/White	No
Processor	Hi3512
Dual Streaming	Support
Video Compression	H.264 Main Profile@Level 3.0 / MJPEG, optional
Video Resolution	704576(PAL), 704480(N)
Video frame rate	PAL:1-25fps, N:1-30fps
Video Bitrate	32Kbit/S-16Mbit/S
Audio Compression	G.726
Title Overlaid	Supports channel name, date, and video stream information overlaid; Adjustable overlaid place
Alarm output	1 channel output ,120VAC 1A/24VDC 1A
Alarm Input	1 channel input ,Normally Open/Normally Close modes adjustable
E-mail Based Alert	Support
RTSP Protocols	Support, you can view live video by VLC player
FTP Protocols	Support,auto upload images to a ftp server.
Black light compensation	ON/OFF
Mobile Monitor	Supports smart mobile phones that are based on Windows Mobile 6, Symbian v3,v5,Android and iPhone.
Consumption	less than 35W
Temperature Storage	-45 TO 65 °C;
Temperature Operation	-40 TO 60 °C;
