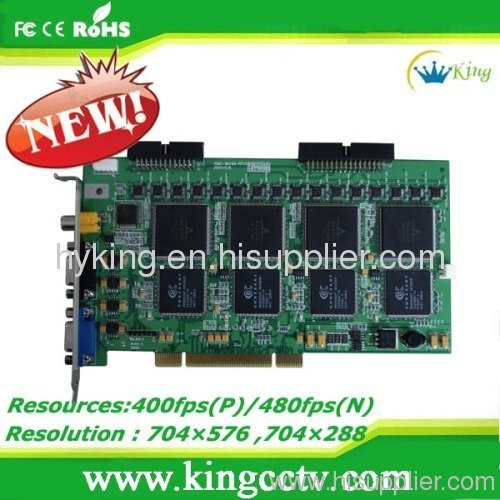

16 chs dvr card Kodicom KMC-8416A Video Capture Card KMC8416A manufacturer from China Shenzhen hyking industrial co,ltd

16 chs dvr card Kodicom KMC-8416A Video Capture Card

Payment Terms:	T/T,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KMC8416A

Production Capacity: 3000 pcs/months

Delivery Date: 3-5 working days

Compression: H.264

Video: 16chs

Resolution video: 704x576 ,704x288

Realtime: Yes

Means of Transport: Air

Packing: OEM package Neutral package

Brand Name: Kodicom

Audio: 4chsTV-OUT(RCA)

Resources: 400fps(PAL)/480fps(NTSC)

Support 32 chs: Yes

IInterface: PCI Type

16 channel dvr card Kodicom:
1.Video:16CH,Audio:4CH TV-OUT(RCA);
2.400fps(P)/480fps(N)
3.704×576,704×288
4.Support 32 chs

16 chs dvr card Kodicom KMC-8416A Video Capture Card

*Real-Time remote surveillance

*Easy operation with a user friendly interface

*More economical than timelapse V.C.R

*High resolution digital image (no degradation)

*Constant and event-controlled recording

*3 levels of password protection

*Low management, operation and maintenance cost

*Adjustable recording speed for each camera
Main Functions

Main Functions
Real-Time monitoring
Simultaneously record up to 16 cameras
Search real-time
search by date, time and camera
Image compression " storage
High-resolution compression to average of 1~6kb per picture with kodicom patented engine-k codec algorithm
Motion tracking
Enables a camera to follow an object without manual intervention
Image transmission
High quality picture transmission over pstn, isdn " lan network
Auto transmission
Auto transmission to monitoring center when emergency occurs
Remote control
Pan/tilt/zoom, control and other electronic devices

Feature:

KMC-8416A
Capture Rate (max)	16CH Real-Time monitoring 480(NTSC) /400(PAL) fps rec. " display. Can build 32CH Real-Time(960/800fps) system from 2pcs KMC-8416
Image Rate	Real-Time 30(NTSC) / 25(PAL) fps each camera
Resolution	NTSC: 640x480,320x240,160x120 PAL: 768x576,384x288,192x144
Video Input	1-16 CH (can build 32CH from 2pcs.)
Audio Input	4CH
External Monitor	1CH TV-OUT
IE Support	YES
P/T/Z Control	1-16 CH, RS422/RS485
Compression Format	Engine-k (developed by kodicom)
IInterface	PCI Type
Input Type	D-Type: DB-29
OS	Windows 98 / ME / 2000Pro / XP Pro
